Custom Non-standard Model

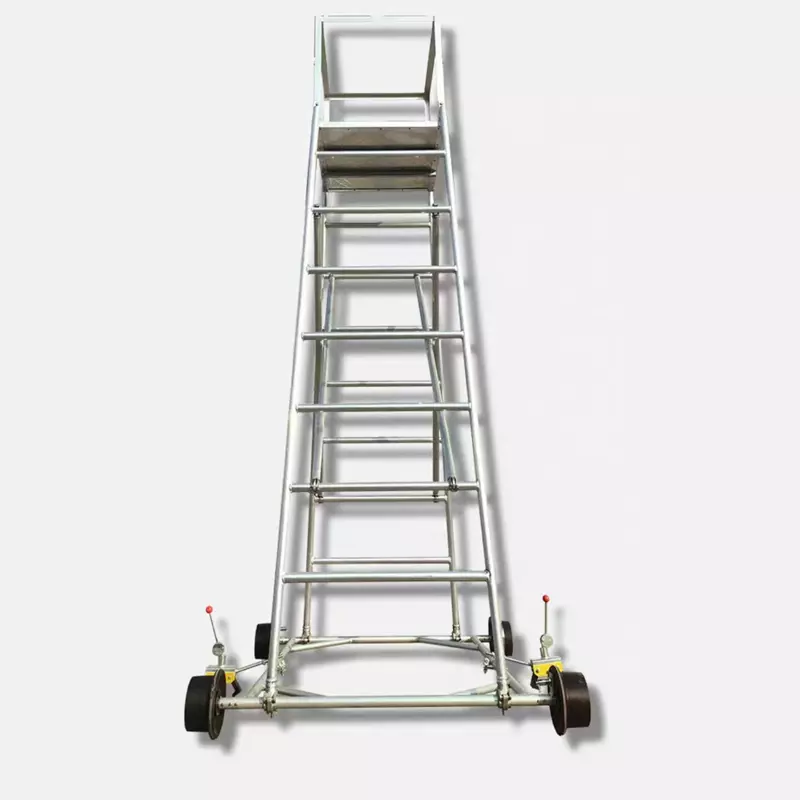

● Worktable Size: 900mm×700mm×735mm ● Equipped with aluminum alloy worktable; composed of ladder frame, lower upright columns and chassis ● Frames adopt Al-Mg alloy angle steel; foot pedals are made of patterned aluminum alloy plate; overall aluminum welded construction ● Ladder frame and lower upright columns are integrally welded using Φ32×3mm thick aluminum alloy tubes; chassis adopts high-quality welded steel pipes ● Caster wheels are made of rare-earth wear-resistant modified nylon; two sets of anti-rollover devices are symmetrically mounted on the chassis ● Chassis Wheel Track: 1750mm ● Track Gauge: 1435±10mm ● High structural strength and excellent stability after assembly; total trolley weight controlled within 105kg ● Worktable Load Capacity: ≤2000N ● Step Load Capacity: ≤1200N







★ Suitable for wire height up to 5000mm, height adjustable ★ Available for customization according to customer requirements
