Aluminum Alloy Combination Ladder Trolley
Product Overview

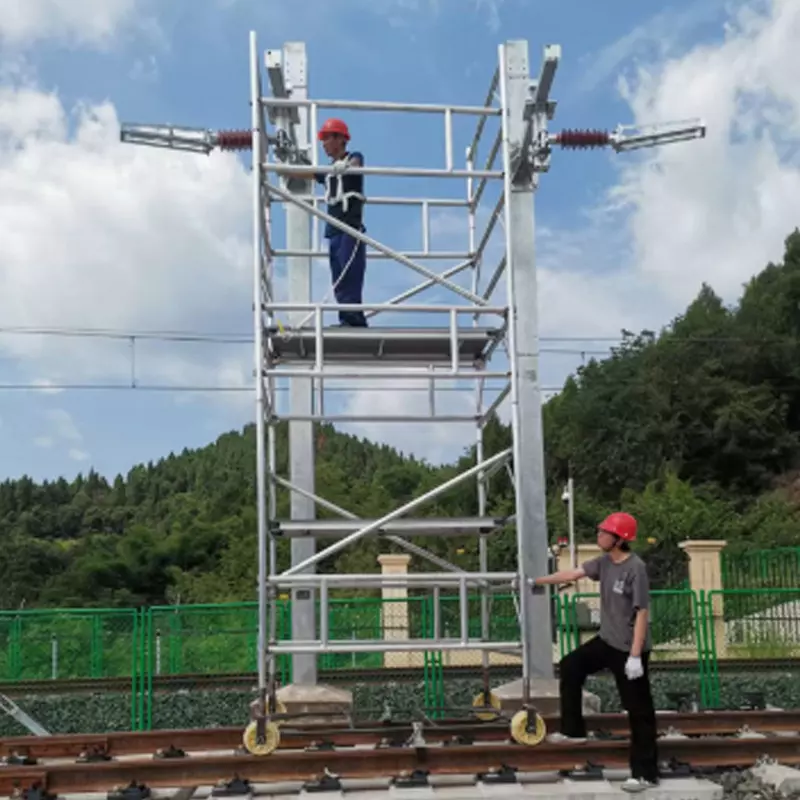

The Aluminum Alloy Combination Ladder Trolley is a specialized mobile maintenance platform designed for the inspection and repair of overhead contact systems (OCS) in electrified railways, high-speed rail, metro, and light rail transit systems-. As an essential piece of equipment for contact network maintenance crews, this trolley provides a safe, stable, and efficient elevated working platform for emergency repairs, fault handling, and routine maintenance of catenary systems and electrical equipment.
Manufactured by Yunxin Intelligent Equipment (Chengdu) Co., Ltd. – a National High-tech Enterprise with ISO9001 certification and over 40 patents – this ladder trolley combines lightweight portability with robust structural integrity, offering rail operators a reliable solution for overhead line maintenance in both routine and emergency scenarios.
Key Features & Benefits
High-Strength Aluminum Alloy Construction – Built from high-strength industrial aluminum alloy profiles with optimized cross-section design, the trolley is lightweight yet durable, corrosion-resistant, and virtually maintenance-free. The lightweight design significantly reduces transportation and assembly effort while ensuring long service life in demanding outdoor railway environments.
Quick-Assembly & Foldable Design – The trolley features a tool-free, snap-lock fastening system with no bolt connections, enabling rapid assembly and disassembly by two workers in approximately one minute. The foldable ladder structure allows for compact storage and easy transportation between work sites.
Stable & Safe Working Platform – The top working platform features wing panels that can be unfolded and locked flat to expand the usable work area, with sturdy supports underneath for enhanced stability. Guardrails are provided around the platform to ensure operator safety at height.
Anti-Tilt Braking System – Equipped with an anti-tilt brake mechanism that prevents the trolley from tipping over and provides secure positioning on sloped tracks. A manual braking device is also incorporated, eliminating the reliance on manual stabilization during operation.
Insulated Wheels for Track Operation – Fitted with high-strength rare-earth nylon wheels that offer excellent insulation properties, low rolling noise, and smooth operation along standard-gauge rails-. The wheelbase and track gauge are precisely configured for stable travel on 1435mm standard-gauge tracks.
Height-Adjustable Platform – The working platform height can be adjusted to accommodate different catenary heights, with a typical adjustment range of up to 500mm and maximum working heights from 4,000mm to 6,450mm depending on configuration.
Technical Specifications
Applications
-
Overhead contact system (OCS) inspection and repair on high-speed rail, conventional rail, metro, and light rail networks-
-
Emergency fault response and troubleshooting for railway electrification systems
-
Routine preventive maintenance of catenary equipment and electrical apparatus
-
Catenary height measurement and stagger value detection
-
Tunnel and track-side overhead equipment access
Why Choose Yunxin Intelligent Equipment
As a National High-tech Enterprise with ISO9001 certification and an AAA corporate credit rating, Yunxin Intelligent Equipment brings over 40 patents and a dedicated R&D team of 17 technical professionals to every product we deliver-. Our Aluminum Alloy Combination Ladder Trolley is trusted by major railway operators including China Railway Chengdu Bureau, Xi‘an Bureau, Guangzhou Bureau, and CRRC Sifang – a testament to our commitment to quality, safety, and customer satisfaction.
